Barix RetailPlayer

• Latest generation, robust, cost-effective player

• Cloud or client server based management system

• Individual volume and stream selection control

• Management of groups, clients and users

• Advanced firmware update and OS recovery architecture

• OEM branding possible

• Free selection of streaming service

RetailPlayer Solution is the newest generation platform for multi-channel background music streaming. It defines a new price point for a background music delivery system to many sites. Targeting customer with a need for streaming background music and messages using the internet, the RetailPlayer solution provides a cost effective, robust and highly scalable solution. A portal server (that runs in the cloud or can be installed at the clients premises) provides the configuration as well as firmware update and management for all players. For the streaming server, the customer is open to select the most competitive solution on the market and is not locked to the Barix platform.


Applications

• Background music for In-store, gym, church, hotels and more
• Streaming Audio and Message to many sites using the internet
• Long lasting with ultra robust Barix player
• Remote control for volume and stream selection
• Remote firmware update

Technical Specifications

User Interface

• Browser based web interface
• Recessed reset button, and status LEDs


RJ45 100Mbit Ethernet Interface

• IPv4, IPv6 capable
• 10/100, full/half duplex, auto negotiation


External Power Supply included

• 5VDC +/- 5%
• 10Watt
• 2.1mm barrel connector


USB Port

• for Memory or I/O (future extensions)


Decoding Formats
• MP2, MP3, AAC+ LC and HE
• Stream playback from URL, m3u playlist or customer user agent

Environmental

Operating Environment

0 to +50°C / 32 to 122°F
0 - 70% relative humidity, non-condensing


Storage Conditions

0 to +70°C / 32 to 158°F
0 - 70% relative humidity, non-condensing


Reliability

• MTBF 225’000h

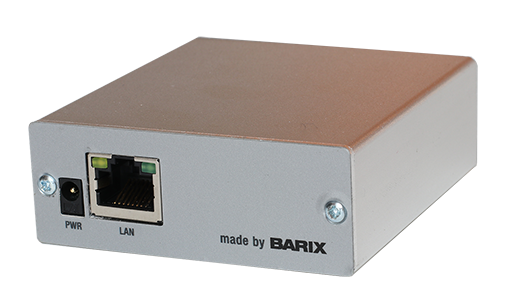

Case

• High quality aluminium case
• 1.02” x 2.76” x 3.07” 26mm (h) x 70mm (w) x 78 mm (d)
• 135g weight


Audio output


• Prosumer level (0dBm) audio output on 3.5mm gold plated connector with optional cable supervision

Certifications

RoHS, FCC, CE, C-Tick

Ordering Information

2017_9221P_Barix RetailPlayer EU Package

2017_9222P_Barix RetailPlayer US Package

2017_9223P_Barix RetailPlayer UK Package

2017_9224P_Barix RetailPlayer No PSU Package
